MatchingPursuit: An R Framework for Sparse Time-Series Decomposition Using Matching Pursuit and Orthogonal Matching Pursuit

Purpose

Sparse signal decomposition framework for one- and multi-channel biomedical and general time-series data using the Matching Pursuit and Orthogonal Matching Pursuit algorithms. For multi-channel signals, each channel is decomposed independently; atoms are not selected jointly across channels.

The package provides native R implementations of MP-R and OMP-R for both general matrix-based dictionaries and parameterized Gabor dictionaries, together with the optional external EMPI backend for high-performance MP decomposition.

Supported features:

• Sparse decomposition using arbitrary user-defined dictionaries
• Native R implementations of:
  • Matching Pursuit (MP-R)
  • Orthogonal Matching Pursuit (OMP-R)
• An educational and reference implementation of OMP through omp_reference()
• Direct, iterative Gabor-based MP/OMP decomposition using FFT-based projections and analytical phase optimization, without materializing the full dictionary
• Optional high-performance Gabor-based Matching Pursuit using the external Enhanced Matching Pursuit Implementation (EMPI) backend
• Support for biomedical signal formats:
  • EDF / EDF+ files
  • WFDB records
  • three standard EEG montages (bipolar, referential, and average-reference montages)
• Plotting time-frequency maps for Gabor-based MP, OMP, and EMPI results
• Signal preprocessing using notch, low-pass, high-pass, band-pass, and band-stop filters

Note:

The terms MP-R and OMP-R, with the suffix R, refer to the corresponding native R backends rather than to the algorithms themselves. The terms MP and OMP, without the suffix R, refer to the corresponding algorithms rather than to a specific implementation.

Installation

You can install the released version from CRAN with:

install.packages("MatchingPursuit")

Quick start

MP-R and OMP-R: Gabor-based decomposition

For Gabor-based decomposition, mp_omp_execute() provides the high-level interface. It generates or reads the parameterized Gabor dictionary and calls mp_core_gabor() or omp_core_gabor() for iterative selection based on the current residual. It combines decomposition results across channels and returns an object of class "mp" without materializing the complete dictionary.

sig_file <- system.file("extdata", "sample1.csv", package = "MatchingPursuit")
signal <- read_csv_signals(sig_file)

out_mp <- mp_omp_execute(
  signal = signal,
  mode = "mp",          # use "omp" for Orthogonal Matching Pursuit
  n_nonzero_coefs = 50,
  verbose = TRUE
)

plot(out_mp, channel = 1)

If dictionary = NULL, an XML Gabor dictionary specification is generated internally.

The time–frequency map below shows the energy distribution of the selected atoms. White crosses indicate the centers of individual time–frequency blobs, i.e.  the atoms’ central time and central frequency coordinates. The panels below show the original signal and its reconstruction; in this example, the reconstruction explains 99.25% of the signal energy.

Decomposition with a custom dictionary

The native R implementations can operate directly on arbitrary user-defined dictionaries. Dictionary atoms are supplied as columns of a numeric matrix and are normalized internally to unit L2 norm.

N <- 256
t <- seq(0, 1, length.out = N)

dictionary <- cbind(
  sin(2 * pi * 5 * t),
  cos(2 * pi * 5 * t),
  sin(2 * pi * 10 * t),
  cos(2 * pi * 10 * t)
)

signal_custom <- sin(2 * pi * 5 * t) + 0.5 * cos(2 * pi * 10 * t)

out <- omp_core(
  dictionary = dictionary,
  signal = signal_custom,
  n_nonzero_coefs = 2
)

out$support
# [1] 1 4

out$relative_residual_energy
# [1] 1.000000e+00 2.012529e-01 6.721842e-32

In the example above, OMP correctly identifies atoms 1 and 4, corresponding to the 5 Hz sine and 10 Hz cosine components used to construct the signal. After two iterations, the residual energy is effectively zero.

EMPI

EMPI is an optional external third-party backend used for high-performance Matching Pursuit decomposition and is distributed separately under its own license. It is not part of the MatchingPursuit package.

EMPI must first be installed using the empi_install() function. The decomposition can then be performed using empi_execute() and visualized using plot().

sig_file <- system.file("extdata", "sample1.csv", package = "MatchingPursuit")
signal <- read_csv_signals(sig_file)

out_empi <- empi_execute(
  signal = signal
)

plot(out_empi, channel = 1)

This example illustrates an EMPI-based decomposition and its time–frequency representation. The map reveals several localized components distributed across time and frequency, while the reconstructed signal closely follows the original waveform. In this case, the selected atoms explain 98.96% of the signal energy.

Educational OMP implementation

For small illustrative and validation examples, omp_reference() provides a straightforward reference implementation that follows the mathematical formulation of OMP explicitly, including least-squares coefficient updates and residual orthogonality checks.

ref <- omp_reference(
  dictionary = dictionary,
  signal = signal_custom,
  n_nonzero_coefs = 2
)

ref$selected_atoms
# [1] 1 4

ref$coefficients_original_dict
# [1] 1.0 0.0 0.0 0.5

ref$normalized_reconstruction_error_original_dict
# [1] 6.951762e-16

ref$orthogonality
# [[1]]
# [1] -5.031148e-15

# [[2]]
# [1] -5.297255e-15  7.072036e-15

The reference implementation recovers the exact coefficients of the original dictionary, while the near-zero reconstruction error and orthogonality values confirm the expected OMP properties.

Package architecture

The package provides three main decomposition routes.

Typical workflows

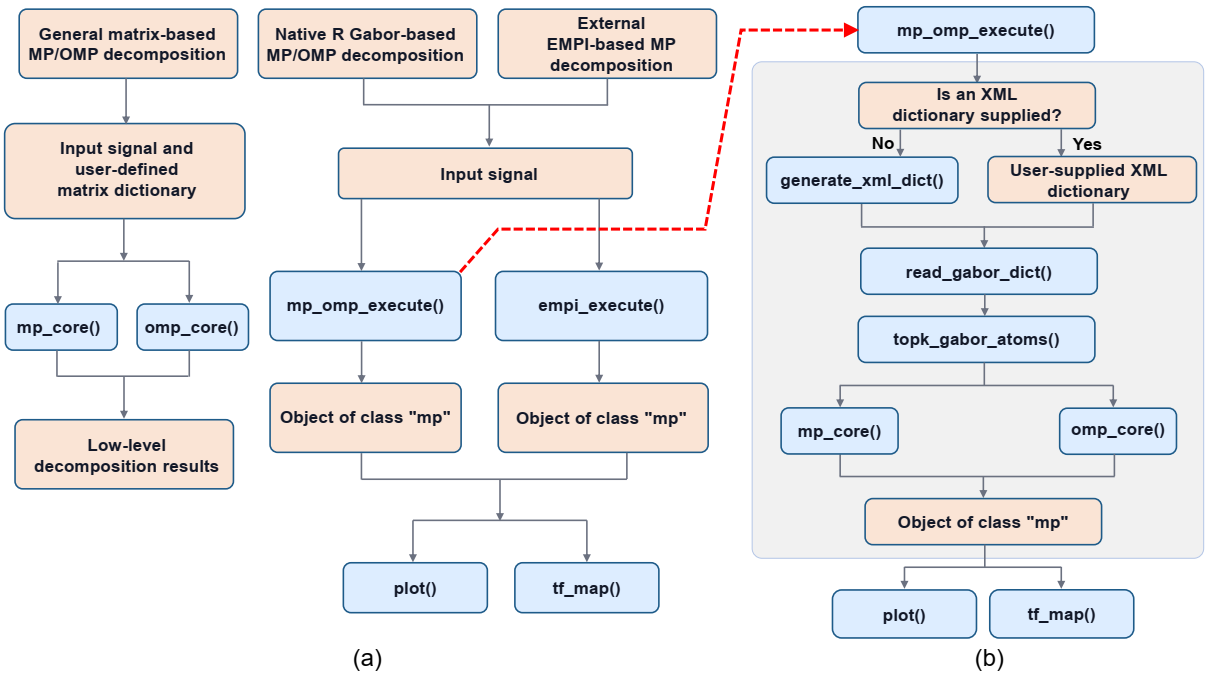

The diagram below illustrates the main workflows supported by MatchingPursuit. The package provides native R implementations of MP and OMP for both user-defined matrix dictionaries and parameterized Gabor dictionaries, as well as optional integration with the external EMPI backend. Gabor-based MP and OMP can be performed without materializing the full dictionary.

Figure legend: Blue boxes represent R functions, while light orange boxes represent workflow steps, inputs, or output objects.

The general matrix-based MP/OMP workflow operates directly on a user-defined numeric dictionary and input signal through mp_core() or omp_core(). It is independent of the Gabor-specific dictionary construction utilities and can therefore be used with arbitrary matrix dictionaries. These functions return low-level decomposition results, giving the user direct control over the dictionary and the decomposition procedure.

The native R Gabor-based MP/OMP workflow uses mp_core_gabor() and omp_core_gabor() for direct decomposition with a parameterized Gabor dictionary. The high-level mp_omp_execute() interface handles XML dictionary generation or selection, calls read_gabor_dict(), and processes each signal channel independently. At each iteration, the selected algorithm searches for the Gabor atom best matching the current residual. Candidate projections are evaluated using FFT-based computations, and atom phase is optimized analytically. Only selected atoms are constructed in the time domain; no top-k preselection or complete matrix dictionary is required. MP updates the residual after each selection, while OMP additionally recomputes all active coefficients by least squares. The channel results are combined into an object of class "mp".

The external EMPI-based MP workflow provides an alternative MP implementation through empi_execute(). In this case, decomposition is performed by the external high-performance C++ EMPI backend rather than by the native R MP/OMP core functions. The wrapper integrates the external decomposition results into the same package-level "mp" representation, allowing them to be handled using the same downstream visualization functions, including plot() and tf_map().

Thus, the three workflows differ in their level of abstraction, dictionary representation, and decomposition backend: direct matrix-based MP/OMP for arbitrary user-defined dictionaries, the integrated native Gabor MP/OMP workflow, and the external EMPI-based Gabor MP workflow. The latter two return a common "mp" object, facilitating consistent visualization and interpretation within the package.

Documentation

The package documentation includes:

• Introduction vignette
• Reference manual

Supported input formats

The package supports generic multichannel time-series together with commonly used biomedical formats:

• CSV (generic signals)
• EDF / EDF+ (EEG, ECG)
• WFDB (physiological records)

Citation

To cite MatchingPursuit in publications, use:

citation("MatchingPursuit")

License

MatchingPursuit is distributed under the GNU General Public License version 3 (GPL-3).

EMPI is external third-party software, distributed separately under its own license, and is not part of the MatchingPursuit package.
